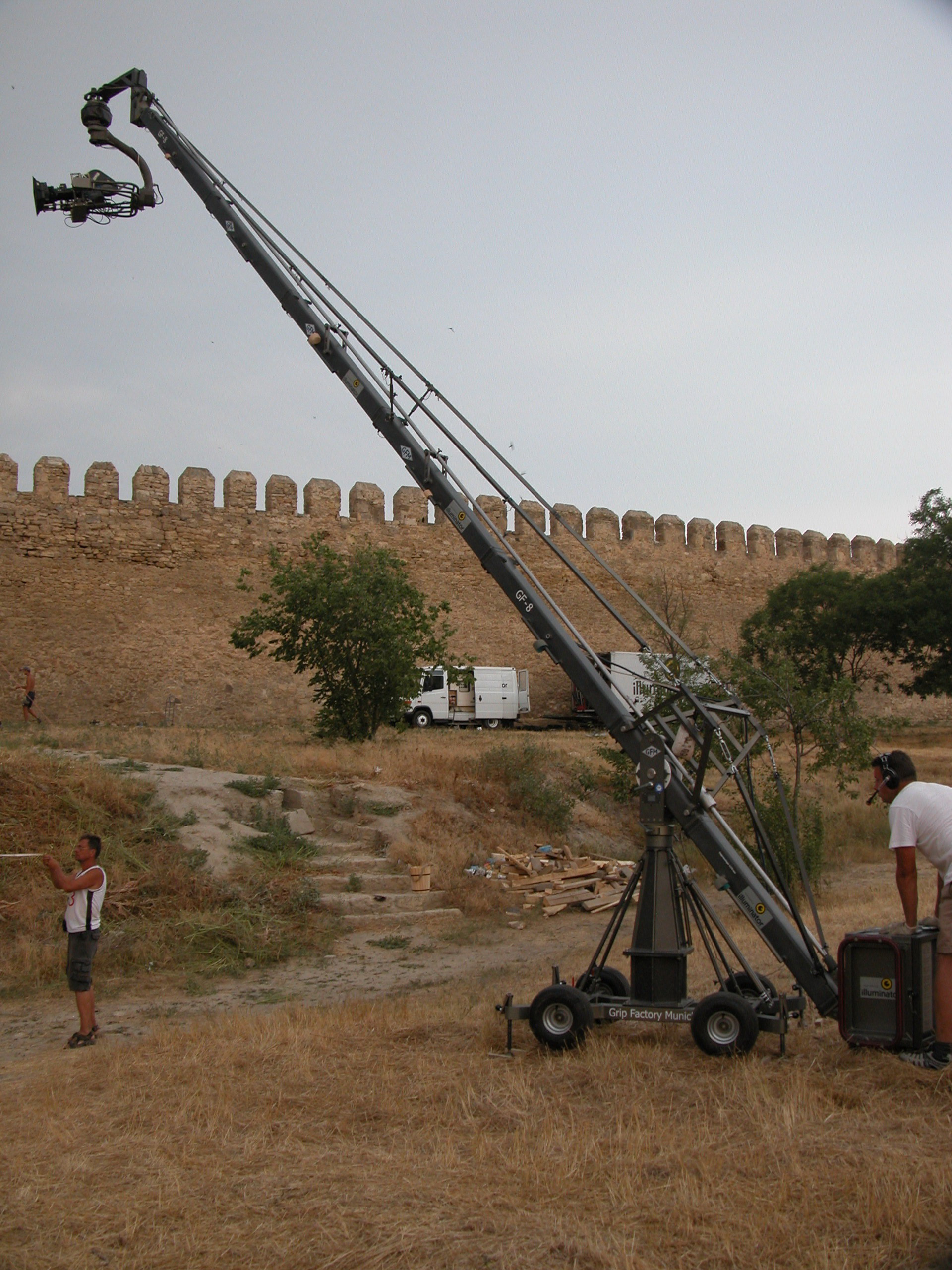

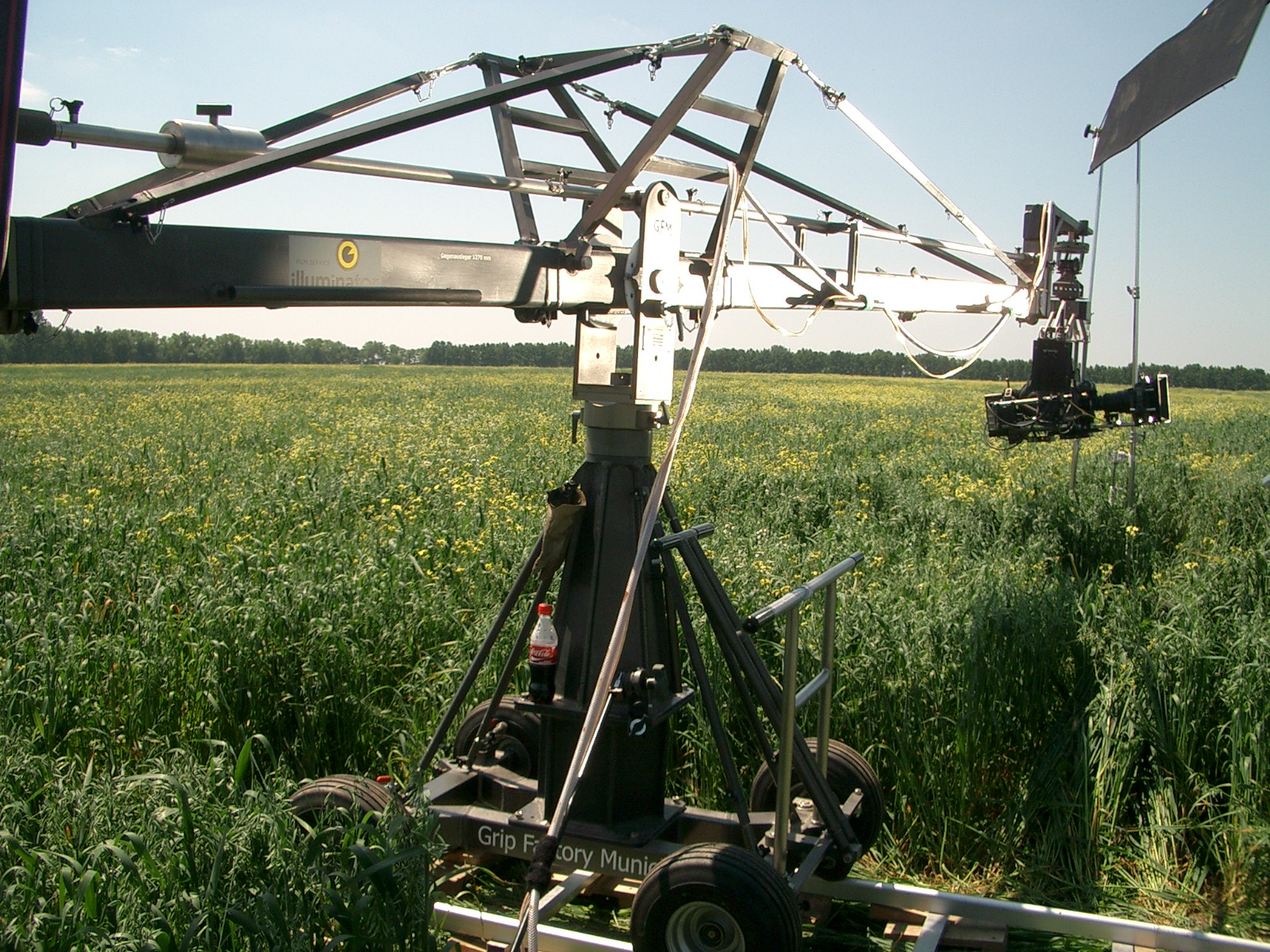

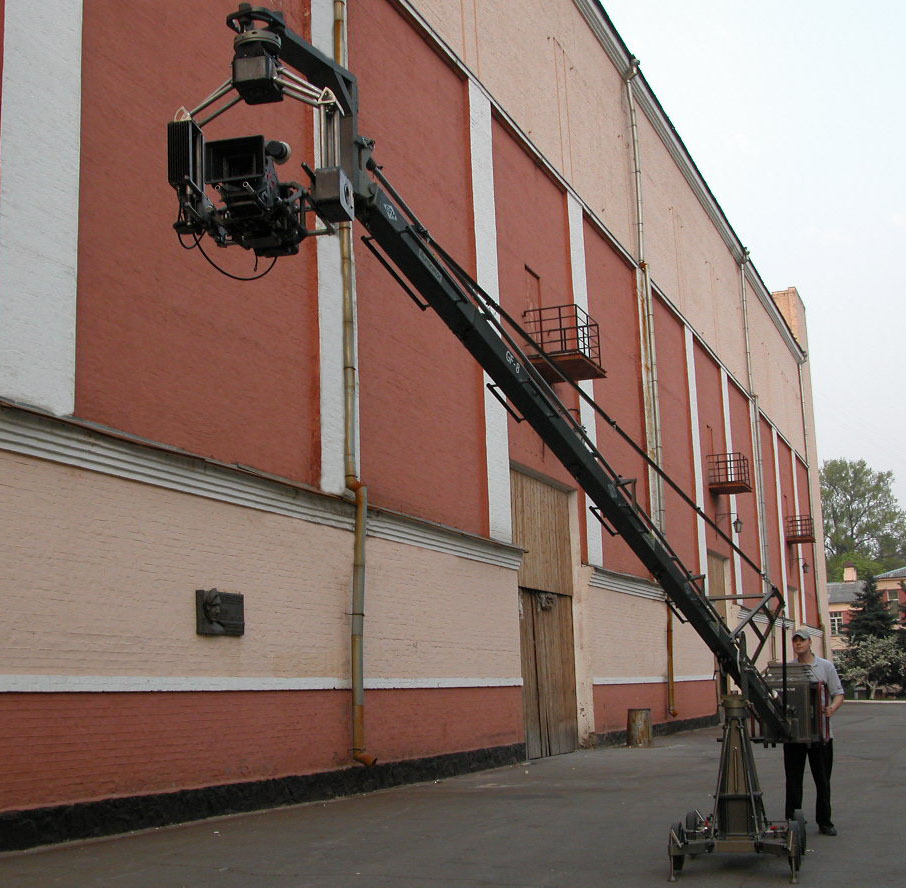

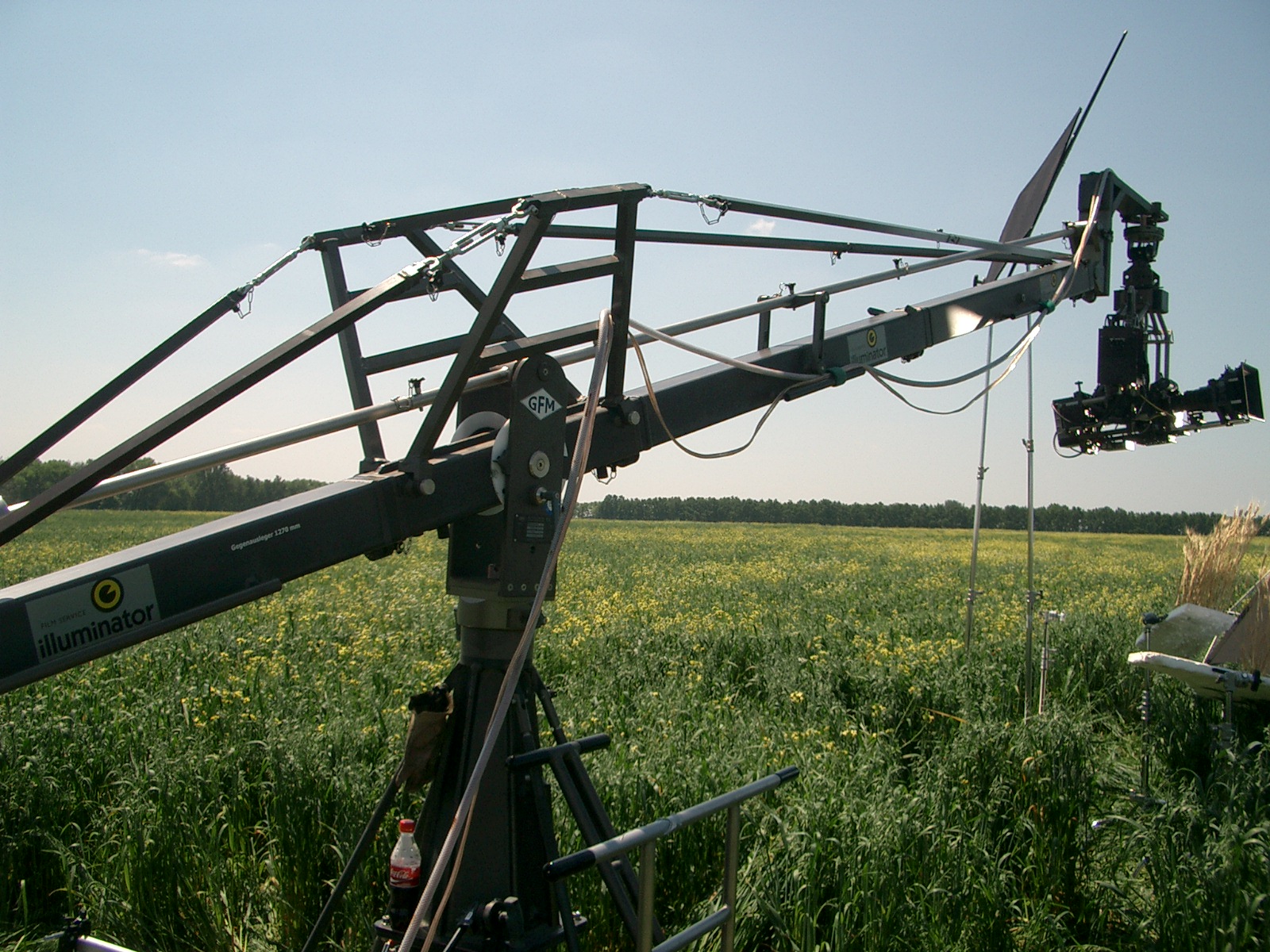

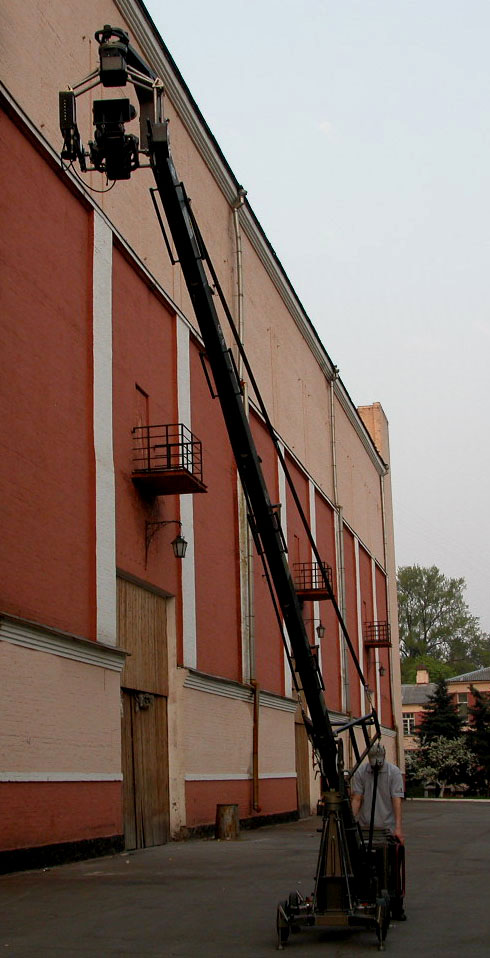

GF-8 CRANE SYSTEM offers a wide range of options and solutions that more than meet demands and requirements of film and video production. GF-8 remote crane system is lightweight, rideable and easy in usage and transportation.

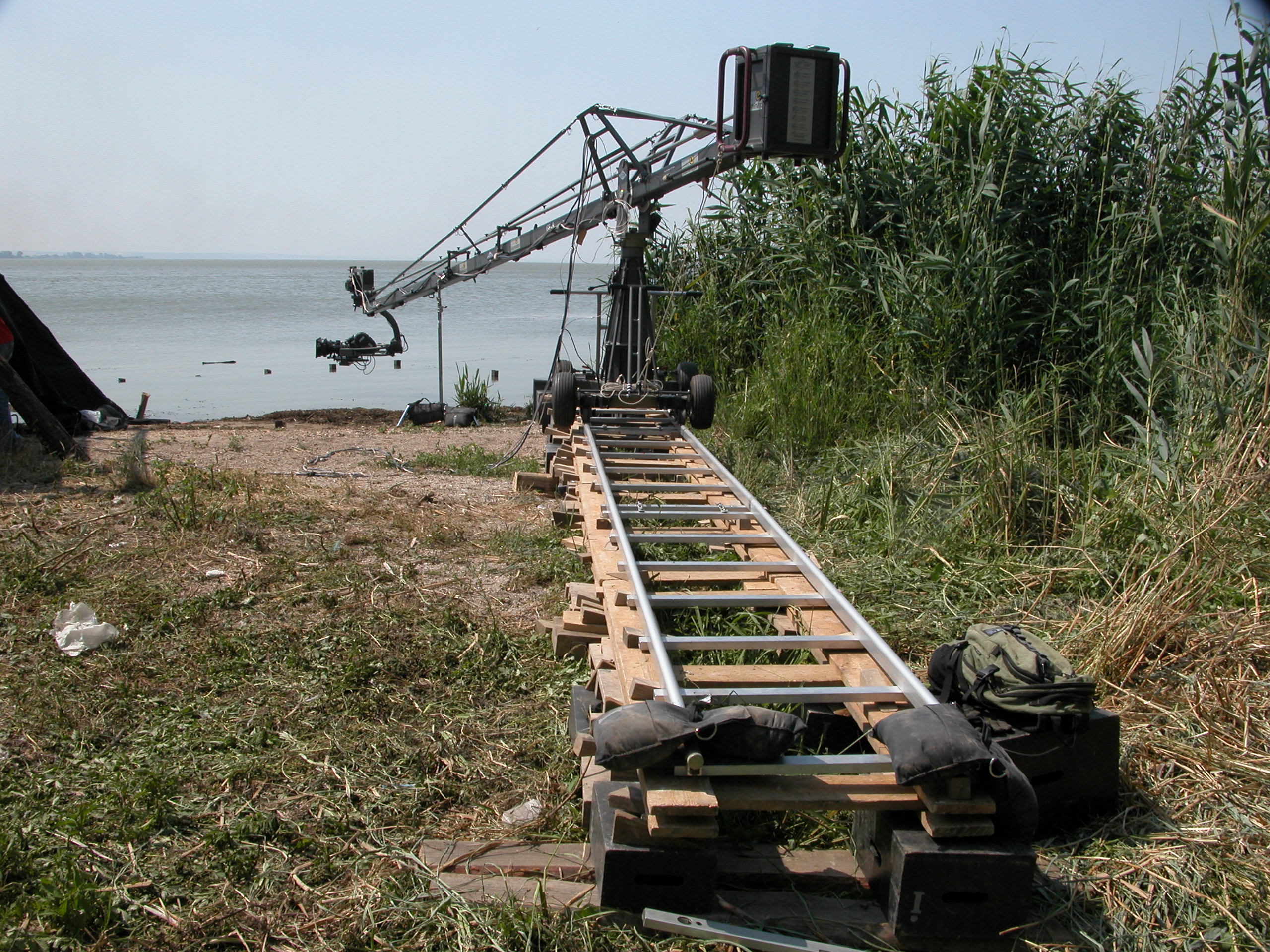

GF-8 Crane System is working on studio, pneumatic, soft wheels and on the rails. It also could be fixed to GMC (Specially equipped car for the shooting) what will give you wide opportunities to shoot difficult and interesting shots.
The are eight main versionts of the crane system assembly. They are listed below...
CRAN FOR TWO PEOPLE:
front extension arm from 2.40m till 3.90m; maximum Euro-adapter height from 3.31m till 4.53m accordingly; lift capacity (working load) 2 pers. + accessories from 250kg/ 550Ibs till 216kg/475lbs accordingly; rear extension arm 1.27m

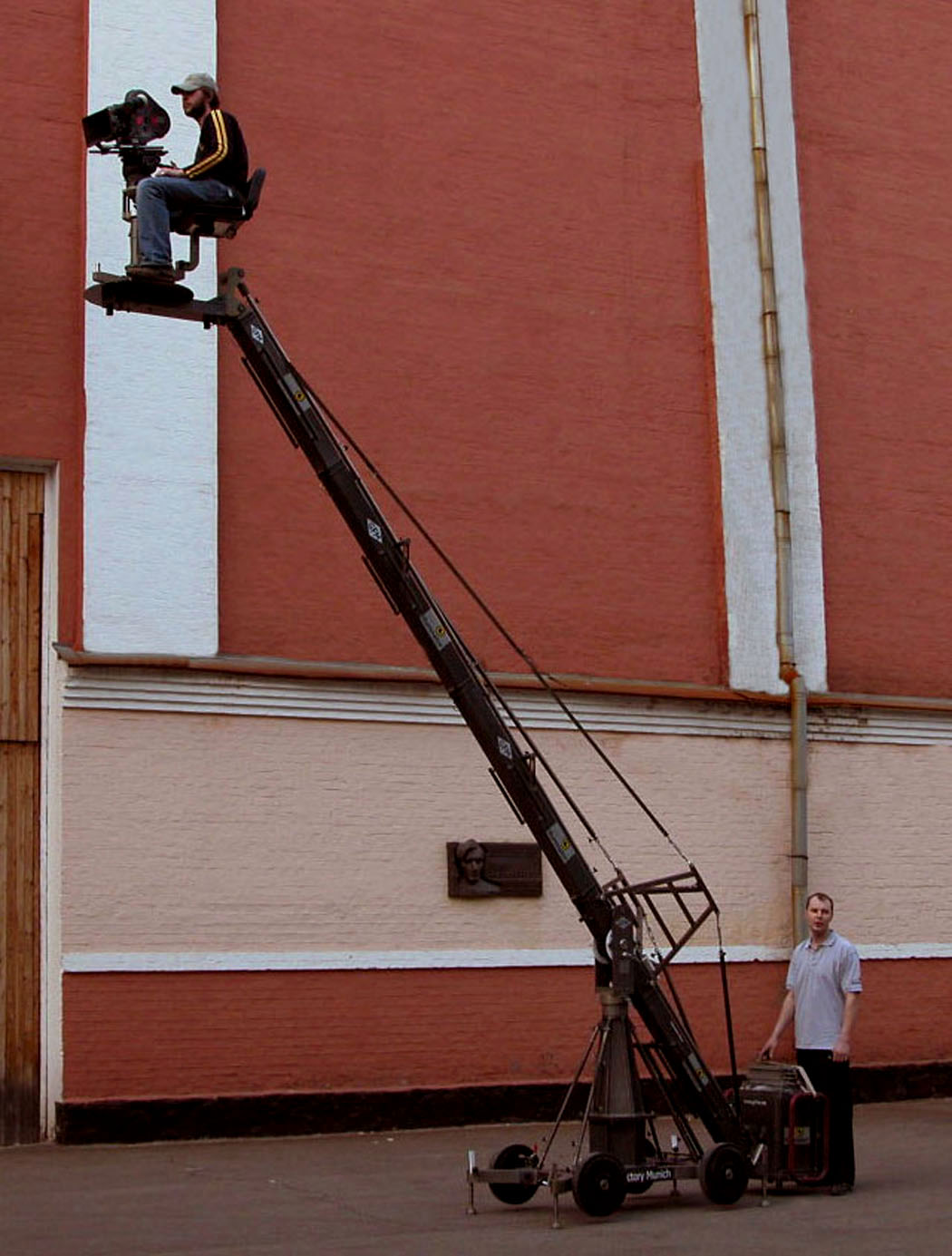

CRAN FOR ONE PERSON:
front extension arm from 4.90m till 5.40m; maximum Euro-adapter height from 5.34m till 5.76m accordingly; lift capacity (working load) 1 pers. + accessories from 150kg to 128kg accordingly; rear extension arm 1.27m
CRAN WITH GYROSTABILIZED HEAD:
front extension arm from 6.60m till 9.37m; maximum height to Mitchel plate from 6.75m till 9.31m accordingly; lift capacity (working load) camera+ accessories from 80kg/176Ibs to 50kg/110Ibs accordingly; rear extension arm 1.27m
FEATURES:
- Base doubles as Western or Track Dolly
- Interchangeable extensions available in 0.3m, 0.6m, 0.9m, 1.5m, 1.8m lengths
- No numerical set-up procedure
- No dedicated front or back
- Extension arm system allows for combination of any arm to the other
- Easier rigging assembly! All rods are identical
- Fast and easy set-up
- Lightweight parts
- Extremely stable arm
- Surface hardened finish
- TV Certified
